SY10EL35

JK FLIP-FLOP

SY10EL35 Features

* s 525ps propagation delay s 2.2GHz toggle frequency s High bandwidth output transistions s Internal 75KΩ input pull-down resistors s Available in 8-pin SOIC package DESCRIPTION The SY10/100EL35 are high-speed JK Flip-Flops. The J/K data enters the master portion of the flip-flop when the clock is L

SY10EL35 General Description

The SY10/100EL35 are high-speed JK Flip-Flops. The J/K data enters the master portion of the flip-flop when the clock is LOW and is transferred to the slave and, thus, the outputs, upon a positive transition of the clock. The reset pin is asynchronous and is activated with a logic HIGH. TRUTH TABLE.

SY10EL35 Datasheet (73.39 KB)

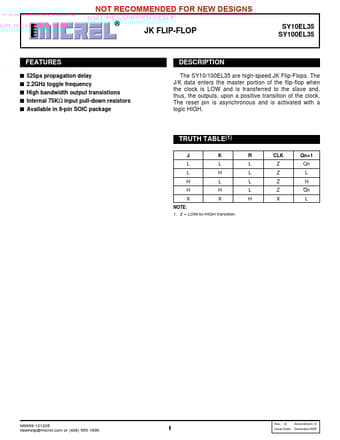

Preview of SY10EL35 PDF

Datasheet Details

Part number:

SY10EL35

Manufacturer:

Micrel Semiconductor

File Size:

73.39 KB

Description:

Jk flip-flop.
