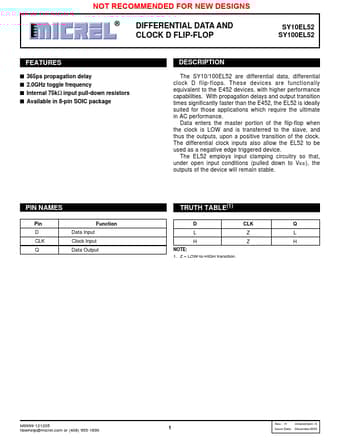

SY10EL52 Datasheet, Flip-flop, Micrel Semiconductor

SY10EL52 Features

• Flip-flop s 365ps propagation delay s 2.0GHz toggle frequency s Internal 75kΩ input pull-down resistors s Available in 8-pin SOIC package DESCRIPTION The SY10/100EL52 are differential data, diff

PDF File Details

Part number:

SY10EL52

Manufacturer:

Micrel Semiconductor

File Size:

74.94kb

Download:

📄 Datasheet

Description:

Differential data and clock d flip-flop. The SY10/100EL52 are differential data, differential clock D flip-flops. These devices are functionally equivalent to the E452 device

SY10EL52 Application

• Applications which require the ultimate in AC performance. Data enters the master portion of the flip-flop when the clock is LOW and is transferred
