DSC2042 Datasheet, Oscillator, Micrel

DSC2042 Features

  • Oscillator
  • Low RMS Phase Jitter: <1 ps (typ)
  • High Stability: ±10, ±25, ±50 ppm
  • Wide Temperature Range o Industrial: -40° to 85° C o Ext. commercial: -20° to 70° C

PDF File Details

Part number:

DSC2042

Manufacturer:

Micrel

File Size:

521.92kb

Download:

📄 Datasheet

Description:

Low-jitter configurable hcsl-lvpecl oscillator. The DSC2042 series of high performance dual output oscillators utilize a proven silicon MEMS technology to provide excellent jitter a

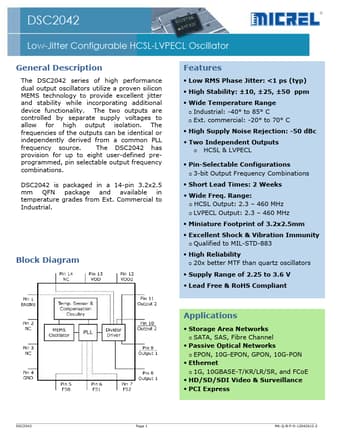

Datasheet Preview: DSC2042 📥 Download PDF (521.92kb)
Page 2 of DSC2042 Page 3 of DSC2042
