MIC2004 - Fixed Current Limit Power Distribution Switch

Datasheet Summary

Description

MIC2004 and MIC2014 are current limiting, high-side power switches, designed for general purpose power distribution and control in PCs, PDAs, printers and other self-powered systems.

MIC2004 and MIC2014’s primary functions are current limiting and power switching.

Features

  • 70mΩ typical on-resistance 2.5V - 5.5V operating range Pre-set current limit values; 0.5A, 0.8A and 1.2A Load discharge FET Kickstart™ Thermal Protection Under voltage lock-out Low quiescent current.

📥 Download Datasheet

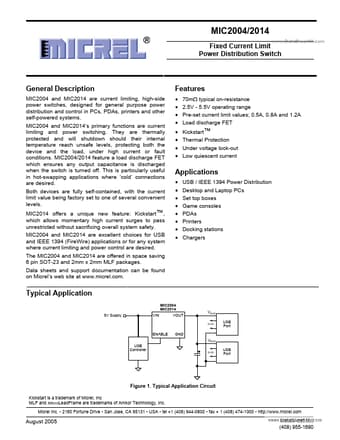

Datasheet preview – MIC2004

Datasheet Details

Part number MIC2004
Manufacturer Micrel
File Size 912.70 KB
Description Fixed Current Limit Power Distribution Switch
Datasheet download datasheet MIC2004 Datasheet
Additional preview pages of the MIC2004 datasheet.
