PL502-03 Datasheet, vcxo equivalent, Micrel

PDF File Details

Part number:

PL502-03

Manufacturer:

Micrel

File Size:

268.26kb

Download:

📄 Datasheet

Description:

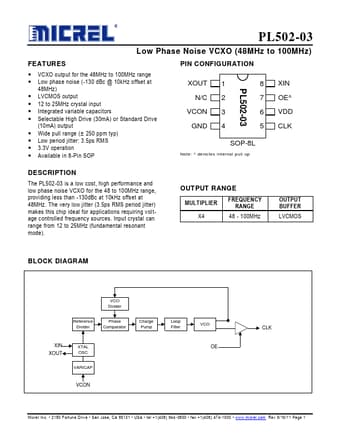

Low phase noise vcxo. The PL502-03 is a low cost, high performance and low phase noise VCXO for the 48 to 100MHz range, providing less than -130dBc at 10kH

PL502-03 Application

• Applications requiring voltage controlled frequency sources. Input crystal can range from 12 to 25MHz (fundamental resonant mode). OUTPUT RANGE MU
