PL602-03 - Low Phase Noise CMOS XO

Datasheet Summary

Description

The PL602-03 is a low cost, high performance and low phase noise XO, providing less than -130dBc at 10kHz offset in the 48MHz to 100MHz operating range.

The very low jitter makes this chip ideal for applications requiring clean reference frequency sources.

📥 Download Datasheet

Datasheet preview – PL602-03

Datasheet Details

Part number PL602-03
Manufacturer Micrel
File Size 226.95 KB
Description Low Phase Noise CMOS XO
Datasheet download datasheet PL602-03 Datasheet
Additional preview pages of the PL602-03 datasheet.

📁 Similar Datasheet

  • PL600-27T - Low Power 3 Output XO (Micrel Semiconductor)
  • PL603-27 - Multimedia Clocks (PhaseLink Corporation)
  • PL607041 - HCSL Frequency Synthesizer (Micrel Semiconductor)
  • PL610-01 - Single IC XO (Microchip)
  • PL610-01 - 1MHz to 130MHz XO IC (PhaseLink Corporation)
  • PL610-02 - Single IC XO (Microchip)
  • PL610-03 - Single IC XO (Microchip)
  • PL611-01 - Programmable Quick Turn Clock (PhaseLink Corporation)
  • PL611-05 - Programmable Quick Turn Clock (PhaseLink Corporation)
  • PL611-07 - Programmable Quick Turn Clock (PhaseLink Corporation)
Other Datasheets by Micrel
  • PL602-00 - Multiplier XO IC Die
  • PL602-04 - Low Phase Noise CMOS XO
  • PL602-30 - 750kHz - 800MHz Low Phase Noise XO
  • PL602-35 - 750kHz - 800MHz Low Phase Noise Multiplier XO
  • PL602-37 - 750kHz - 800MHz Low Phase Noise Multiplier XO
  • PL602-38 - 750kHz - 800MHz Low Phase Noise Multiplier XO
  • PL602-39 - 750kHz - 800MHz Low Phase Noise Multiplier XO
  • PL602031 - HCSL-Compatible Clock Generator

Full PDF Text Transcription

Click to expand full text

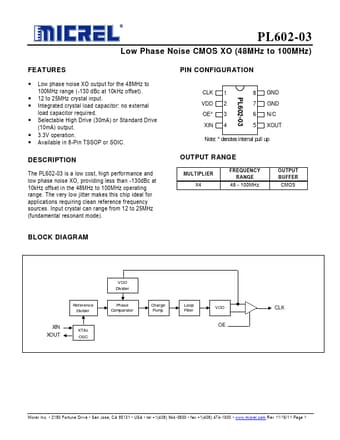

PL602-03 Low Phase Noise CMOS XO (48MHz to 100MHz) FE AT UR E S  Low phase noise XO output for the 48MHz to 100MHz range (-130 dBc at 10kHz offset).  12 to 25MHz crystal input.  Integrated crystal load capacitor: no external load capacitor required.  Selectable High Drive (30mA) or Standard Drive (10mA) output.  3.3V operation.  Available in 8-Pin TSSOP or SOIC. DESCRIPTION The PL602-03 is a low cost, high performance and low phase noise XO, providing less than -130dBc at 10kHz offset in the 48MHz to 100MHz operating range. The very low jitter makes this chip ideal for applications requiring clean reference frequency sources. Input crystal can range from 12 to 25MHz (fundamental resonant mode).
