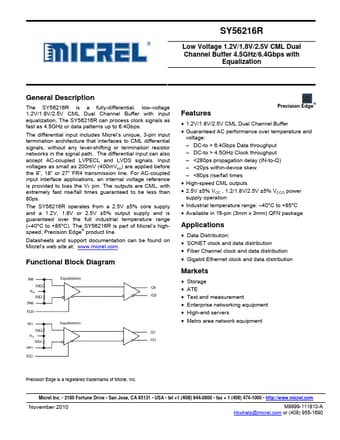

SY56216R Datasheet, Buffer, Micrel

SY56216R Features

• Buffer Precision Edge®
• 1.2V/1.8V/2.5V CML Dual Channel Buffer
• Guaranteed AC performance over temperature and voltage:
    – DC-to > 6.4Gbps Data throughput

PDF File Details

Part number:

SY56216R

Manufacturer:

Micrel

File Size:

475.87kb

Download:

📄 Datasheet

Description:

Cml dual-channel buffer. The SY56216R is a fully-differential, low-voltage 1.2V/1.8V/2.5V CML Dual Channel Buffer with input equalization. The SY56216R can pr

SY56216R Application

• Applications an internal voltage reference is provided to bias the VT pin. The outputs are CML, with extremely fast rise/fall times guaranteed to b
