SY89230U

Clock Divider

SY89230U Features

* Accepts a high-speed input and provides a precision ÷3 and ÷5 sub-rate, LVPECL output

* Guaranteed AC performance over temperature and supply voltage:

* DC-to >3.2 GHz throughput

* < 850ps Propagation Delay (In-to-Q)

* < 200ps Rise/Fall times

* Ultra

SY89230U General Description

The SY89230U is a precision, low jitter 3.2 GHz ÷3, ÷5 clock divider with an LVPECL output. The differential input includes Micrel’s unique, 3-pin internal termination architecture that allows the input to interface to any differential signal (AC- or DCcoupled) as small as 100mV (200mVPP) without an.

SY89230U Datasheet (485.09 KB)

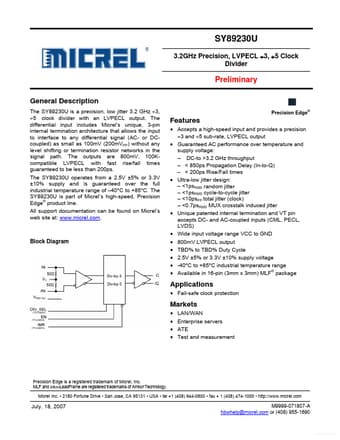

Preview of SY89230U PDF

Datasheet Details

Part number:

SY89230U

Manufacturer:

Micrel

File Size:

485.09 KB

Description:

Clock divider.
