BZX55-C10 - 500 mWatt Zener Diode 2.42 to 47 Volts

Micro Commercial Components

📥 Download Datasheet

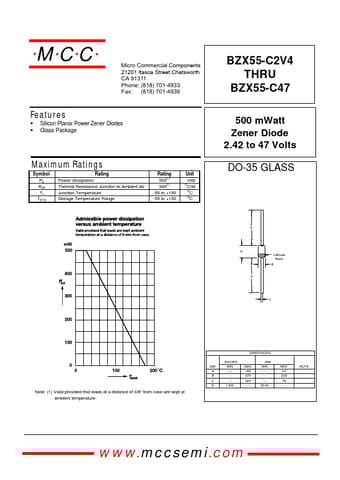

BZX55-C10 Datasheet Preview — Preview of BZX55-C10 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	BZX55-C10
Manufacturer	Micro Commercial Components
File Size	154.29 KB
Description	500 mWatt Zener Diode 2.42 to 47 Volts
Datasheet	BZX55-C10_MicroCommercialComponents.pdf

BZX55-C10 Product details

Features

omponents 21201 Itasca Street Chatsworth !"# $ % !"# BZX55-C2V4 THRU BZX55-C47 500 mWatt Zener Diode 2.42 to 47 Volts Silicon Planar Power Zener Diodes Glass Package Maximum Ratings Symbol PD RJA TJ TSTG Rating Power dissipation Thermal Resistance Junction to Ambient Air Junction Temperature Storage Temperature Range Rating 500(1) 300(1) -55 to +150 -55 to +150 Unit mW O C/W O C O C DO-35 GLASS D A Cathode M.
