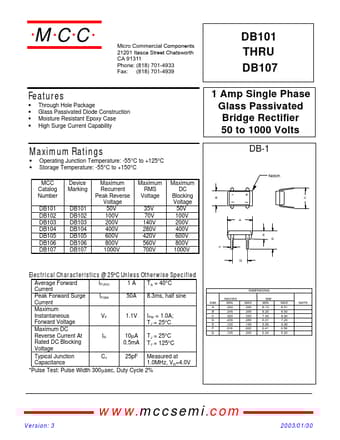

DB101
Features
- -
- -
omponents 21201 Itasca Street Chatsworth !"# $
% !"#
DB101 THRU DB107
1 Amp Single Phase Glass Passivated Bridge Rectifier 50 to 1000 Volts
DB-1
Notch
Through Hole Package Glass Passivated Diode Construction Moisture Resistant Epoxy Case High Surge Current Capability
Maximum Ratings
- - MCC Catalog Number DB101 DB102 DB103 DB104 DB105 DB106 DB107 Device Marking
Operating Junction Temperature: -55 °C to +125°C Storage Temperature: -55°C to +150°C Maximum Recurrent Peak Reverse Voltage 50V 100V 200V 400V 600V 800V 1000V Maximum RMS Voltage 35V 70V 140V 280V 420V 560V 700V Maximum DC Blocking Voltage 50V 100V 200V 400V 600V 800V 1000V
~
+
~
DB101 DB102 DB103 DB104 DB105 DB106 DB107
Electrical Characteristics @ 25°C Unless Otherwise Specified
Average Forward IF(AV) 1A TA = 40°C Current Peak Forward Surge IFSM 50A 8.3ms, half sine Current Maximum 1.1V IFM = 1.0A; Instantaneous VF...
