GP15 - 1.5 Amp Glass Passivated Junction Rectifiers 50 to 1000 Volts

Datasheet Summary

Features

  •    omponents 21201 Itasca Street Chatsworth    !"# $ %    !"# GP15A THRU GP15M 1.5 Amp Glass Passivated Junction Rectifiers 50 to 1000 Volts DO-15.
  • High temperature metallurgically bonded construction Glass passivated cavity-free junction, Plastic Case 1.5 amperes operation at TA=55OC and with no thermal runaway. Typical IR less than 0.1uA.
  • Maximum Ratings Operating Tem.

📥 Download Datasheet

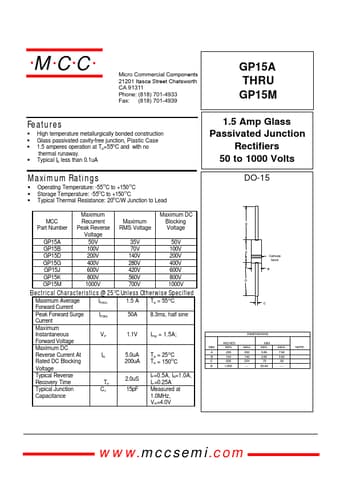

Datasheet preview – GP15
