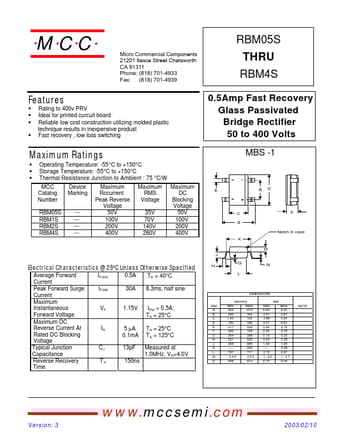

Features - - - - RBM05S omponents 21201 Itasca Street Chatsworth !"# $ % !"# THRU RBM4S 0.5Amp Fast Recovery Glass Passivated Bridge Rectifier 50 to 400 Volts MBS -1 ∼ B ∼ C A Notch in case K M J G L + F D Rating to 400v PRV Ideal for printed curcuit board Reliable low cost construction utilizing molded plastic technique results in inexpensive produst Fast recovery , low loss switching Maximum Ratings - - - Operating Temperature: -55 °C to +150°C Storage Temperature: -55°C to +150°C Thermal Resistance Junction to Ambient : 75 °C/W MCC Catalog Number RBM05S RBM1S RBM2S RBM4S Device Marking Maximum Rccurrent Peak Reverse Voltage 50V 100V 200V 400V Maximum RMS Voltage 35V 70V 140V 280V Maximum DC Blocking Voltage 50V 100V 200V 400V --------- Electrical Characteristics @ 25°C Unless Otherwise Specified Average Forward Current Peak Forward Surge Current Maximum Instantaneous Forward Voltage Maximum DC Reverse Current At Rated DC Blocking Voltage Typical Junction Capacitance Reverse Recovery Time IF(AV) IFSM 0.5A 30A TA = 40°C 8.3ms, half sine M INCHES .252 .272 .017 .029 .090 .106 .004 .008 .021 .023 .055 .065 ----.200 .040 .050 .008 .014 MM 6.40 0.45 2.30 0.10 0.53 1.40 ---- 1.02 0.15 6.91 94 0.75 2.70 0.20 0.58 1.65 5.08 1.27 0.35 1.15V 5 µA 0.1m A 13p F 150ns IFM = 0.5A; TA = 25°C TA = 25°C TA = 125°C Measured at 1.0MHz, VR=4.0V IR CJ T rr .mccsemi. Version: 3 2003/02/10 RBM05S thru RBM4S Fig. 1 - Maximum Forward Current Derating Curve Average Forward Rectified Current (A) 0.8 0.7 0.6 0.5 0.4 Glass Epoxy P.C.B. 0.3 0.2 0.1 Resistive or Inductive Load 0 0 20 40 60 80 100 120 140 160 0 1 Aluminum Substrate 35 Fig. 2 - Maximum Non-Repetitive Peak Forward Surge Current Peak Forward Surge Current (A) 30 25 20 f = 60Hz 15 10 5.0 f = 50Hz TA = 40°C...
