MLM-192NB-DT Datasheet - Micro Electronics

MLM-192NB-DT Visible LED Blue Color

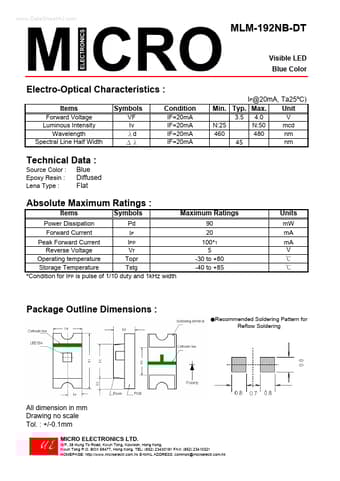

www.DataSheet4U.com MLM-192NB-DT Visible LED Blue Color Electro-Optical Characteristics : Items Forward Voltage Luminous Intensity Wavelength Spectral Line Half Width Symbols VF Iv λd Δλ Condition IF=20mA IF=20mA IF=20mA IF=20mA IF@20mA, Ta25ºC) Min. Typ. Max. Unit 3.5 N:25 460 45 4.0 N:50 480 V mcd nm nm Technical Data : Source Color : Epoxy Resin : Lena Type : Blue Diffused Flat Absolute Maximum Ratings : Items Symbols Maximum Ratings 90 20 100 1 5 -30 to +80 -40 to +85 Units mW m.

MLM-192NB-DT_MicroElectronics.pdf

Preview of MLM-192NB-DT PDF

Datasheet Details

Part number:

MLM-192NB-DT

Manufacturer:

Micro Electronics

File Size:

165.18 KB

Description:

Visible led blue color.
