ML4411 - Sensorless Spindle Motor Controller

Datasheet Summary

Description

The ML4411 provides complete commutation for delta or wye wound Brushless DC (BLDC) motors without the need for signals from Hall Effect Sensors.

Features

  • s s s s s s s Back-EMF commutation provides maximum torque for minimum “spin-up” time for spindle motors Accurate, jitter-free phase locked motor speed feedback output Linear or PWM motor current control Easy microcontroller interface for optimized start-up sequencing and speed control Power fail detect circuit with delayed braking Drives external N-channel FETs and P-channel FETs Back-EMF comparator detects motor rotation after power fail for fast re-lock after brownout.
  • This Product Is O.

📥 Download Datasheet

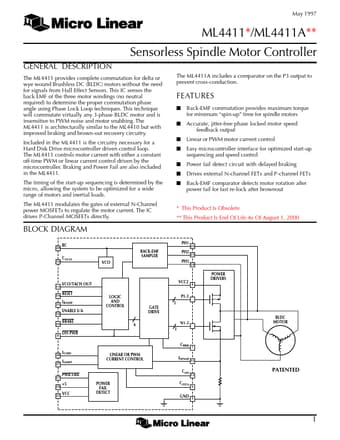

Datasheet preview – ML4411

Datasheet Details

Part number ML4411
Manufacturer Micro Linear
File Size 296.51 KB
Description Sensorless Spindle Motor Controller
Datasheet download datasheet ML4411 Datasheet
Additional preview pages of the ML4411 datasheet.

📁 Similar Datasheet

  • ML44126N - FOR OPTICAL INFORMATION SYSTEMS (Mitsubishi)
  • ML44126R - FOR OPTICAL INFORMATION SYSTEMS (Mitsubishi)
  • ML4403 - Space Qualified Diodes (MA-COM)
  • ML4406 - (ML4xx6) MITSUCISHI LASER DIODES (Mitsubishi Electric)
  • ML4425 - Sensorless BLDC Motor Controller (Fairchild)
  • ML4435 - Sensorless BLDC Motor Controller (Fairchild)
  • ML4446 - (ML4xx6) MITSUCISHI LASER DIODES (Mitsubishi Electric)
  • ML4000 - Space Qualified Diodes (MA-COM)
  • ML401 - 1.7-2.2 GHz High IP3 Mixer (WJ Communication)
  • ML40123N - AIGaAs LASER DIODES (Mitsubishi)
Other Datasheets by Micro Linear
  • ML4411A - Sensorless Spindle Motor Controller
  • ML4423 - 1 / 2 / or 3-Phase Variable Speed AC Motor Controller
  • ML4425 - Sensorless BLDC Motor Controller
  • ML4426 - Bi-directional Sensorless BLDC Motor Controller
  • ML4428 - Sensorless Smart-Start BLDC PWM Motor Controller
  • ML4435 - Sensorless BLDC Motor Controller
  • ML4621 - Data Quantizer
  • ML4622 - Fiber Optic Data Quantizer

Full PDF Text Transcription

Click to expand full text
May 1997 ML4411*/ML4411A** Sensorless Spindle Motor Controller GENERAL DESCRIPTION The ML4411 provides complete commutation for delta or wye wound Brushless DC (BLDC) motors without the need for signals from Hall Effect Sensors. This IC senses the back EMF of the three motor windings (no neutral required) to determine the proper commutation phase angle using Phase Lock Loop techniques. This technique will commutate virtually any 3-phase BLDC motor and is insensitive to PWM noise and motor snubbing. The ML4411 is architecturally similar to the ML4410 but with improved braking and brown-out recovery circuitry. Included in the ML4411 is the circuitry necessary for a Hard Disk Drive microcontroller driven control loop.
