16F873 - PIC16F873

Microchip Technology

📥 Download Datasheet

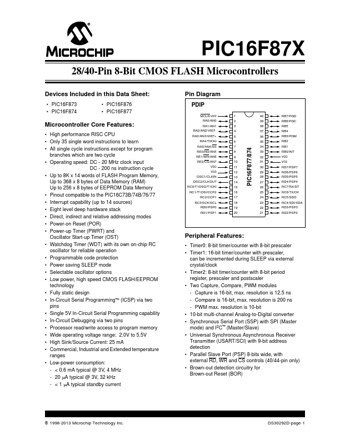

16F873 Datasheet Preview — Preview of 16F873 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	16F873
Manufacturer	Microchip ↗ Technology
File Size	1.68 MB
Description	PIC16F873
Datasheet	16F873_MicrochipTechnology.pdf

16F873 Product details

Features

High performance RISC CPU.
Only 35 single word instructions to learn.
All single cycle instructions except for program branches which are two cycle.
Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle.
Up to 8K x 14 words of FLASH Program Memory, Up to 368 x 8 bytes of Data Memory (RAM) Up to 256 x 8 bytes of EEPROM Data Memory.
Pinout compatible to the PIC16C73B/74B/76/77.
Interrupt capability (up to 14 sources).
