24LC41A

Serial EEPROM

24LC41A Datasheet (244.53 KB)

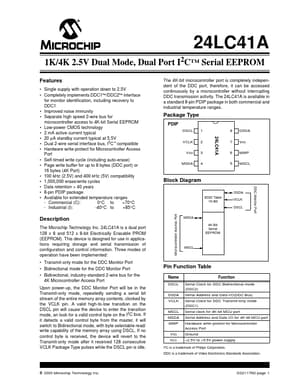

Preview of 24LC41A PDF

Datasheet Details

Part number:

24LC41A

Manufacturer:

Microchip ↗ Technology

File Size:

244.53 KB

Description:

Serial eeprom.

24LC41A Features

* Single supply with operation down to 2.5V

* Completely implements DDC1/DDC2 interface for monitor identification, including recovery to DDC1

* Improved noise immunity

* Separate high speed 2-wire bus for microcontroller access to 4K-bit Serial EEPROM

24LC41A General Description

The Microchip Technology Inc. 24LC41A is a dual port 128 x 8 and 512 x 8-bit Electrically Erasable PROM (EEPROM). This device is designed for use in applications requiring storage and serial transmission of configuration and control information. Three modes of operation have been implemented:
