93C56A - 2-Kbit Microwire Compatible Serial EEPROM

The Microchip Technology Inc. 93XX56A/B/C devices are 2-Kbit low-voltage serial Electrically Erasable PROMs (EEPROM). Word-selectable devices such as the 93AA56C, 93LC56C or 93C56C are dependent upon external logic levels driving the ORG pin to set word size. For dedicated 8-bit communication, the 9.

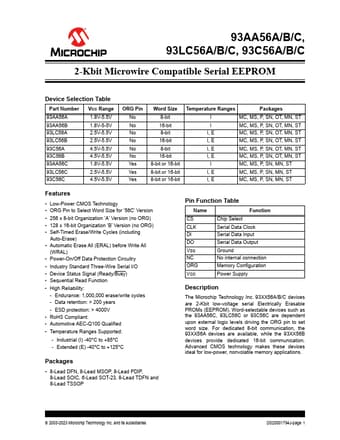

93AA56A/B/C, 93LC56A/B/C, 93C56A/B/C 2-Kbit Microwire Compatible Serial EEPROM Device Selection Table Part Number VCC Range 93AA56A 93AA56B 93LC56A 93LC56B 93C56A 93C56B 93AA56C 93LC56C 93C56C 1.8V-5.5V 1.8V-5-5V 2.5V-5.5V 2.5V-5.5V 4.5V-5.5V 4.5V-5.5V 1.8V-5.5V 2.5V-5.5V 4.5V-5.5V ORG Pin No No No No No No Yes Yes Yes Word Size 8-bit 16-bit 8-bit 16-bit 8-bit 16-bit 8-bit or 16-bit 8-bit or 16-bit 8-bit or 16-bit Temperature Ranges Packages I MC, MS, P, SN, OT, MN, ST I MC, MS, P, S.

93C56A Features

* Low-Power CMOS Technology

* ORG Pin to Select Word Size for ‘56C’ Version

* 256 x 8-bit Organization ‘A’ Version (no ORG)

* 128 x 16-bit Organization ‘B’ Version (no ORG)

* Self-Timed Erase/Write Cycles (including Auto-Erase)

* Automatic Erase All (E
