93C56C - 2-Kbit Microwire Compatible Serial EEPROM

Datasheet Summary

Description

The Microchip Technology Inc.

93XX56A/B/C devices are 2-Kbit low-voltage serial Electrically Erasable PROMs (EEPROM).

Word-selectable devices such as the 93AA56C, 93LC56C or 93C56C are dependent upon external logic levels driving the ORG pin to set word size.

Features

  • Low-Power CMOS Technology.
  • ORG Pin to Select Word Size for ‘56C’ Version.
  • 256 x 8-bit Organization ‘A’ Version (no ORG).
  • 128 x 16-bit Organization ‘B’ Version (no ORG).
  • Self-Timed Erase/Write Cycles (including Auto-Erase).
  • Automatic Erase All (ERAL) before Write All (WRAL).
  • Power-On/Off Data Protection Circuitry.
  • Industry Standard Three-Wire Serial I/O.
  • Device Status Signal (Ready/Busy).
  • Sequential Read Fu.

📥 Download Datasheet

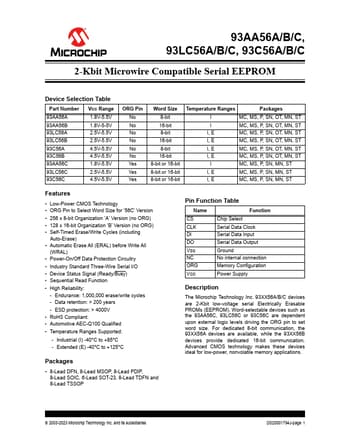

Datasheet preview – 93C56C

Datasheet Details

Part number 93C56C
Manufacturer Microchip Technology
File Size 585.02 KB
Description 2-Kbit Microwire Compatible Serial EEPROM
Datasheet download datasheet 93C56C Datasheet
