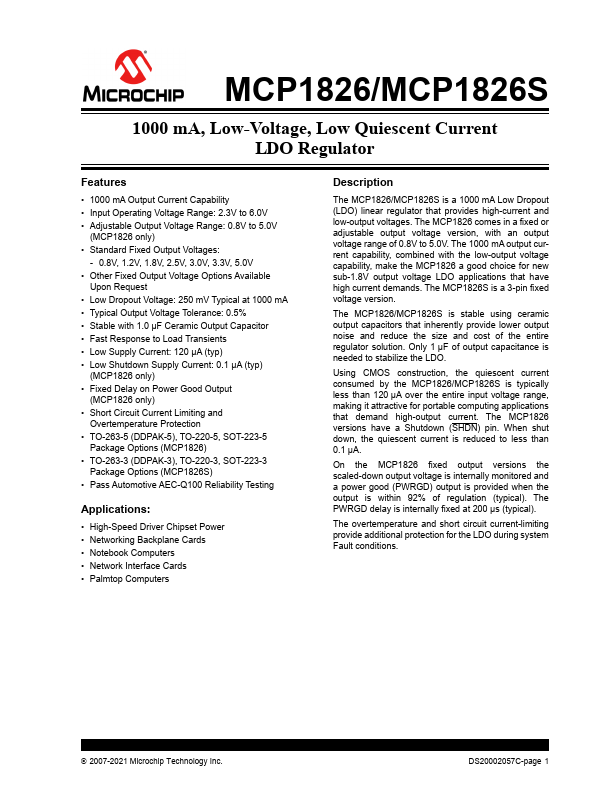

Part number: MCP1826
Manufacturer: Microchip (https://www.microchip.com/) Technology
File Size: 696.27KB
Download: 📄 Datasheet
Description: Low Quiescent Current LDO Regulator
* 1000 mA Output Current Capability
* Input Operating Voltage Range: 2.3V to 6.0V
* Adjustable Output Voltage Range: 0.8V to 5.0V (MCP1826 only)
* Standar.
that have high current demands. The MCP1826S is a 3-pin fixed voltage version. The MCP1826/MCP1826S is stable using cera.
The MCP1826/MCP1826S is a 1000 mA Low Dropout (LDO) linear regulator that provides high current and low output voltages. The MCP1826 comes in a fixed or adjustable output voltage version, with an output voltage range of 0.8V to 5.0V. The 1000 mA outp.
Image gallery
