MCP9800 2-Wire High-Accuracy Temperature Sensor

MCP9800 Description

MCP9800/1/2/3 2-Wire High-Accuracy Temperature Sensor .
Microchip Technology Inc.

MCP9800 Features

* Temperature-to-Digital Converter
* Accuracy with 12-bit Resolution: - ±0.5°C (typical) at +25°C - ±1°C (maximum) from -10°C to +85°C - ±2°C (maximum) from -10°C to +125°C - ±3°C (maximum) from -55°C to +125°C
* User-selectable Resolution: 9-12 bit
* Operating Volta

MCP9800 Applications

* Personal Computers and Servers
* Hard Disk Drives and Other PC Peripherals
* Entertainment Systems
* Office Equipment
* Data Communication Equipment
* Mobile Phones
* General Purpose Temperature Monitoring Typical Application VDD MCP9800/0

📥 Download Datasheet

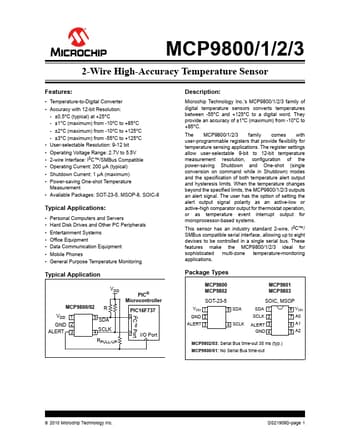

Preview of MCP9800 PDF
datasheet Preview Page 2 datasheet Preview Page 3
