PIC12C509A, PIC-12C, 8-Pin/ 8-Bit CMOS Microcontrollers

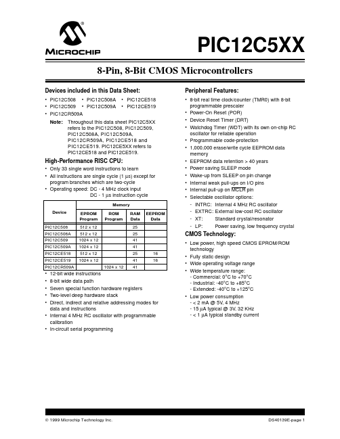

PIC12C5XX 8-Pin, 8-Bit CMOS Microcontrollers Devices included in this Data Sheet: * PIC12C508 * PIC12C508A * PIC12C509 4 PIC12C5XX Device Varieties 7 Architectural Overview 9 Memory Organization 13 I/O Port 21 Timer0 Module and TMR0 Register 25 EEPROM Peripheral Op.

PIC-12C-50.pdf

PIC12C509A Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC12C509A, PIC-12C. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PIC12C509A, PIC-12C

Manufacturer:

Microchip ↗ Technology

File Size:

1.57 MB

Description:

8-Pin/ 8-Bit CMOS Microcontrollers

Note:

This datasheet PDF includes multiple part numbers: PIC12C509A, PIC-12C.
Please refer to the document for exact specifications by model.

Features

* 8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler
* Power-On Reset (POR)
* Device Reset Timer (DRT)
* Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation
* Programmable code-protection
* 1,000,000 eras

Applications

* The PIC12C5XX from Microchip Technology is a family of low-cost, high performance, 8-bit, fully static, EEPROM/EPROM/ROM-based CMOS microcontrollers. It employs a RISC architecture with only 33 single word/single cycle instructions. All instructions are single cycle (1 µ s) except for program branch
