PIC16C641 - 8-Bit EPROM Microcontrollers with Analog Comparators

Product Overview

Microchip Technology

Datasheet Details

Part number	PIC16C641
Manufacturer	Microchip Technology
File Size	634.12 KB
Description	8-Bit EPROM Microcontrollers with Analog Comparators
Datasheet	PIC16C641 Datasheet
Note	This datasheet PDF includes multiple part numbers: PIC16C641, PIC-16C. Please refer to the document for exact specifications by model.

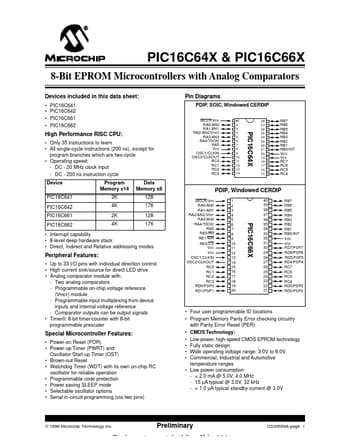

Additional preview pages of the PIC16C641 datasheet.

Product details

Description

5 2.0 PIC16C64X & PIC16C66X Device Varieties 7 3.0 Architectural Overview 9 4.0 Memory Organization 17 5.0 I/O Ports 29 6.0 Timer0 Module 41 7.0 Comparator Module 47 8.0 Voltage Reference Module 53 9.0 Special

Features

Up to 33 I/O pins with individual direction control.
High current sink/source for direct LED drive.
Analog comparator module with: - Two analog comparators - Programmable on-chip voltage reference (VREF) module - Programmable input multiplexing from device inputs and internal voltage reference - Comparator outputs can be output signals.
Timer0: 8-bit timer/counter with 8-bit programmable prescaler Special Microcontroller Features:.
Power-on Reset (.
