PIC16C77 - 8-Bit CMOS Microcontrollers with A/D Converter

This page provides the datasheet information for the PIC16C77, a member of the PIC 8-Bit CMOS Microcontrollers with A/D Converter family.

Description

5 2.0 PIC16C7X Device Varieties 7 3.0 Architectural Overview 9 4.0 Memory Organization 19 5.0 I/O Ports 43 6.0 Overview of Timer Modules 57 7.0 Timer0 Module 59 8.0 Timer1 Module 65 9.0 Timer2 Module 69 10.0 Capture/Compare/PWM Module(s) 71 11.0 Synchronous Serial Port (SSP) Module 77 12.0 Un

Features

  • High-performance RISC CPU.
  • Only 35 single word instructions to learn.
  • All single cycle instructions except for program branches which are two cycle.
  • Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle.
  • Up to 8K x 14 words of Program Memory, up to 368 x 8 bytes of Data Memory (RAM).
  • Interrupt capability.
  • Eight level deep hardware stack.
  • Direct, indirect, and relative addressing modes.
  • Power-on Re.

📥 Download Datasheet

Datasheet preview – PIC16C77

Datasheet Details

Part number PIC16C77
Manufacturer Microchip Technology
File Size 2.16 MB
Description 8-Bit CMOS Microcontrollers with A/D Converter
Datasheet download datasheet PIC16C77 Datasheet

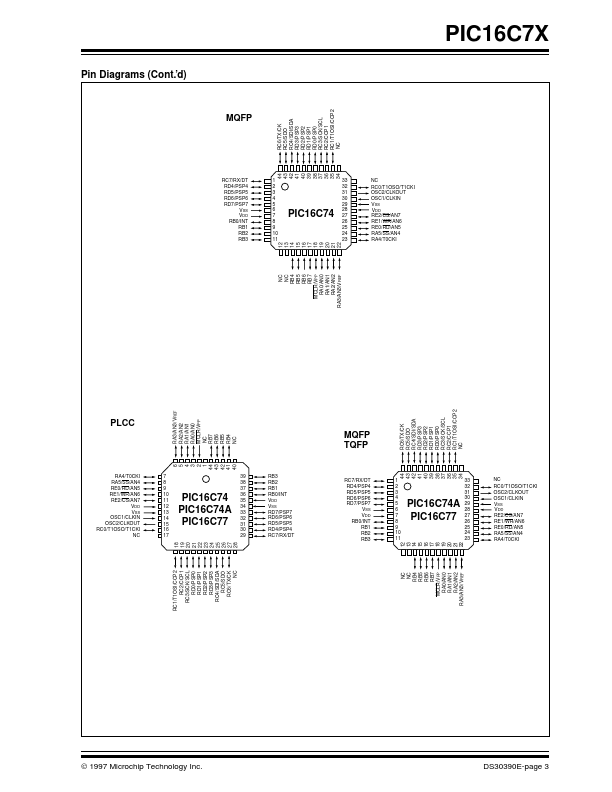

Additional preview pages of the PIC16C77 datasheet.
