PIC16CR54B - 8-Bit CMOS Microcontroller

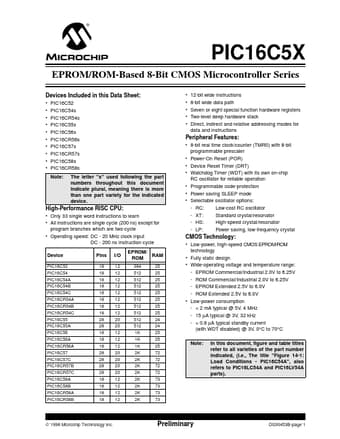

M PIC16C52 PIC16C54s PIC16CR54s PIC16C55s PIC16C56s PIC16CR56s PIC16C57s PIC16CR57s PIC16C58s PIC16CR58s Note: PIC16C5X 12-bit wide instructions 8-bit wide data path Seven or eight special function hardware registers Two-level deep hardware stack Direct, indirect and relative addressing modes for data and instructions EPROM/ROM-Based 8-Bit CMOS M

PIC16CR54B Features

* 8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler

* Power-On Reset (POR)

* Device Reset Timer (DRT)

* Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation

* Programmable code-protection

* Power saving S
