PIC18F43K20 Datasheet - Microchip Technology

PIC18F43K20 28/40/44-Pin Flash Microcontroller

PIC18F2XK20/4XK20 28/40/44-Pin Flash Microcontrollers with XLP Technology High-Performance RISC CPU C Compiler Optimized Architecture: - Optional extended instruction set designed to optimize re-entrant code Up to 1024 bytes Data EEPROM Up to 64 Kbytes Linear Program Memory Addressing Up to 3936 bytes Linear Data Memory Addressing Up to 16 MIPS Operation 16-bit Wide Instructions, 8-bit Wide Data Path Priority Levels for Inter.

PIC18F43K20 Features

* Operating Voltage Range: 1.8V to 3.6V

* Self-Programmable under Software Control

* Programmable 16-Level High/Low-Voltage Detection (HLVD) module: - Interrupt on High/Low-Voltage Detection

* Programmable Brown-out Reset (BOR): - With software enable option

PIC18F43K20 Datasheet (5.21 MB)

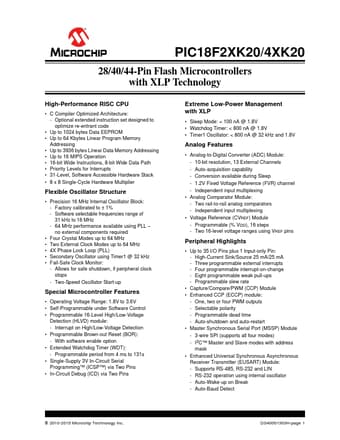

Preview of PIC18F43K20 PDF

Datasheet Details

Part number:

PIC18F43K20

Manufacturer:

Microchip ↗ Technology

File Size:

5.21 MB

Description:

28/40/44-pin flash microcontroller.
