PIC24HJ64GP (PIC24H Family) High Performance 16-Bit Microcontrollers

. TABLE 2-1: Pin Name PIN DESCRIPTIONS (PINS USED DURING PROGRAMMING) During Programming Pin Name Pin Type P P P P I I/O I I/O I I/O Programming Enable Power Supply Ground Regulated Power Supply for Core Primary Programming Pin Pair: Serial Clock Primary Programming Pin Pair: Serial Data Secondary.

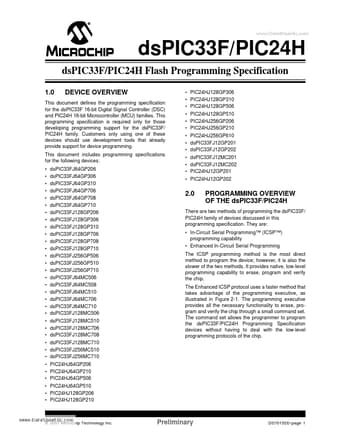

www.DataSheet4U.com dsPIC33F/PIC24H dsPIC33F/PIC24H Flash Programming Specification 1.0 DEVICE OVERVIEW PIC24HJ128GP306 PIC24HJ128GP310 PIC24HJ128GP506 PIC24HJ128GP510 PIC24HJ256GP206 PIC24HJ256GP210 PIC24HJ256GP610 dsPIC33FJ12GP201 dsPIC33FJ12GP202 dsPIC33FJ12MC201 dsPIC33FJ12MC202 PIC24HJ12GP201 PIC24HJ12GP202 This document defines the programming specification for.

PIC24HJ64GP Features

* 24 25 26 27 28 29 30 31 32 DS70152D-page 6 Preliminary © 2007 Microchip Technology Inc. dsPIC33F/PIC24H PROGRAMMING SPECIFICATION www.DataSheet4U.com Pin Diagrams (Continued) 64-Pin TQFP CSDO/RG13 CSDI/RG12 CSCK/RG14 C2RX/RG0 C2TX/RG1 C1TX/RF1 C1RX/R
