TC1047 Datasheet - Microchip Technology

Precision Temperature-to-Voltage Converter

TC1047 Features

* Supply Voltage Range: - TC1047: 2.7V to 4.4V - TC1047A: 2.5V to 5.5V

* Wide Temperature Measurement Range: -40oC to +125oC

* High Temperature Converter Accuracy: ± 2oC, Max, at 25°C

* Linear Temperature Slope 10mV/°C (typ.)

* Available in 3-Pin SOT-23B Packa

TC1047 General Description

The TC1047 and TC1047A are linear voltage output temperature sensors whose output voltage is directly proportional to the measured temperature. The TC1047 and TC1047A can accurately measure temperature from -40°C to +125°C. With the TC1047, the supply voltage can vary between 2.7V and 4.4V. The powe.

TC1047 Datasheet (410.43 KB)

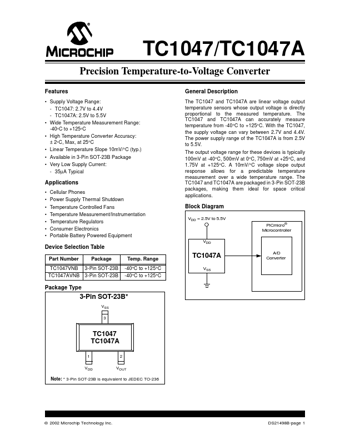

Preview of TC1047 PDF

Datasheet Details

Part number:

TC1047

Manufacturer:

Microchip ↗ Technology

File Size:

410.43 KB

Description:

Precision temperature-to-voltage converter.
