23K256

256-Kbit SPI Bus Low-Power Serial SRAM

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Microchip Technology Inc 23K256-I-P IC SRAM 256KBIT SPI 20MHZ 8DIP DigiKey 376 100 units
$1.3

23K256 Datasheet (377.43 KB)

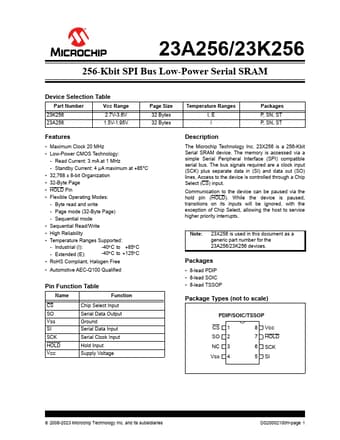

Preview of 23K256 PDF Datasheet

Datasheet Details

Part number:

23K256

Manufacturer:

Microchip ↗

File Size:

377.43 KB

Description:

256-kbit spi bus low-power serial sram.
23A256/23K256 256-Kbit SPI Bus Low-Power Serial SRAM Device Selection Table Part Number VCC Range 23K256 23A256 2.7V-3.6V 1.5V-1.95V Page Size 3.

23K256 Features

* Maximum Clock 20 MHz

* Low-Power CMOS Technology: - Read Current: 3 mA at 1 MHz - Standby Current: 4 µA maximum at +85°C

* 32,768 x 8-bit Organization

* 32-Byte Page

* HOLD Pin

* Flexible Operating Modes: - Byte read and write - Page mode (

23K256 General Description

The Microchip Technology Inc. 23X256 is a 256-Kbit Serial SRAM device. The memory is accessed via a simple Serial Peripheral Interface (SPI) compatible serial bus. The bus signals required are a clock input (SCK) plus separate data in (SI) and data out (SO) lines. Access to the device is controlled .
