24LC32AF

32-Kbit I2C Serial EEPROM

24LC32AF Features

* Single Supply with Operation Down to 1.7V for 24AA32AF Devices, 2.5V for 24LC32AF Devices

* Low-Power CMOS Technology: - Read current: 400 µA, maximum - Standby current: 1 µA, maximum (I-temp.)

* Two-Wire Serial Interface, I2C Compatible

* Packages with 3-Address Pi

24LC32AF General Description

The Microchip Technology Inc. 24XX32AF(1) is a 32-Kbit Electrically Erasable PROM (EEPROM). The device is organized as one block of 4K x 8-bit memory with a two-wire serial interface. Its low-voltage design permits operation down to 1.7V, with standby and active currents of only 1 µA and 400 µA, res.

24LC32AF Datasheet (484.36 KB)

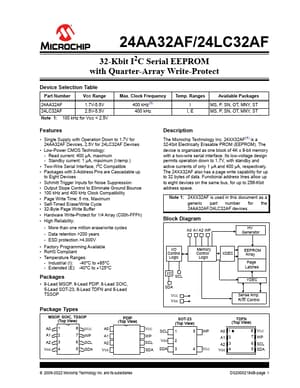

Preview of 24LC32AF PDF

Datasheet Details

Part number:

24LC32AF

Manufacturer:

Microchip ↗

File Size:

484.36 KB

Description:

32-kbit i2c serial eeprom.
24AA32AF/24LC32AF 32-Kbit I2C Serial EEPROM with Quarter-Array Write-Protect Device Selection Table Part Number VCC Range 24AA32AF 1.7V-5.5V 24L.
