25AA160D Datasheet - Microchip

16-Kbit SPI Bus Serial EEPROM

25AA160D Features

* 10 MHz Maximum Clock Speed

* Low-Power CMOS Technology: - Maximum Write current: 5 mA at 5.5V - Read current: 5 mA at 5.5V, 10 MHz - Standby current: 5 µA at 5.5V

* 2048 x 8-bit Organization

* 16-Byte Page (“C” version devices)

* 32-Byte Page (“D” ve

25AA160D General Description

Chip Select Input Serial Data Output Write-Protect Pin Ground Serial Data Input Serial Clock Input Hold Input Supply Voltage The Microchip Technology Inc. 25XX160C/D(1) are 16-Kbit Serial Electrically Erasable PROMs (EEPROM). The memory is accessed via a simple Serial Peripheral Interface (SPI) co.

25AA160D Datasheet (598.37 KB)

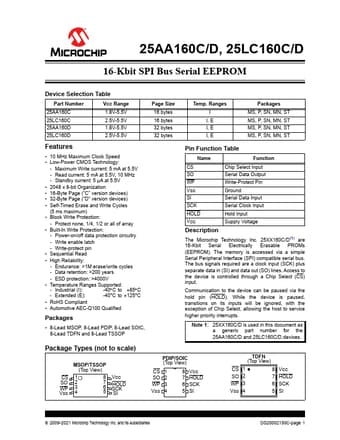

25AA160D Datasheet Preview — Preview of 25AA160D PDF

Datasheet Details

Part number:

25AA160D

Manufacturer:

Microchip ↗

File Size:

598.37 KB

Description:

16-kbit spi bus serial eeprom.
25AA160C/D, 25LC160C/D 16-Kbit SPI Bus Serial EEPROM Device Selection Table Part Number 25AA160C 25LC160C 25AA160D 25LC160D VCC Range 1.8V-5.5V 2.5.
