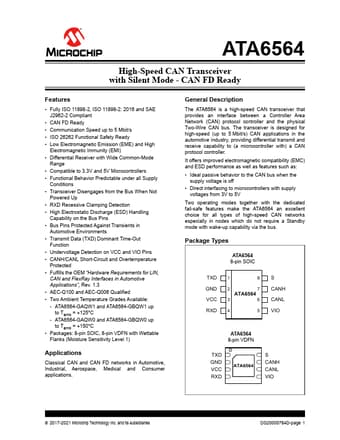

ATA6564 Datasheet, Transceiver, Microchip

ATA6564 Features

• Transceiver
• Fully ISO 11898-2, ISO 11898-2: 2016 and SAE J2962-2 Compliant
• CAN FD Ready
• Communication Speed up to 5 Mbit/s
• ISO 26262 Functional Safety Ready

PDF File Details

Part number:

ATA6564

Manufacturer:

Microchip ↗

File Size:

1.20MB

Download:

📄 Datasheet

Description:

High-speed can transceiver. The ATA6564 is a high-speed CAN transceiver that provides an interface between a Controller Area Network (CAN) protocol controller an

ATA6564 Application

• Applications , Rev. 1.3
• AEC-Q100 and AEC-Q006 Qualified
• Two Ambient Temperature Grades Available: - ATA6564-GAQW1 and ATA6564-GB
