KSZ8462FHLI, KSZ8462HLI - 10/100 Mbps Ethernet Switch

KSZ8462FHLI Description

KSZ8462HLI/FHLI IEEE 1588 Precision Time Protocol-Enabled, Two-Port, 10/100 Mbps Ethernet Switch with 8- or 16-Bit Host Interface .

KSZ8462FHLI Features

* Management Capabilities
* The KSZ8462 Includes All the Functions of a 10/ 100BASE-T/TX/FX Switch System that Combines a Switch Engine, Frame Buffer Management, Address Look-Up Table, Queue Management, MIB Counters, Media Access Controllers (MAC) and PHY Transceivers
* Non-Blocking St

KSZ8462FHLI Applications

* MAC Ports
* Three Internal Media Access Control (MAC) Units
* 2Kbyte Jumbo Packet Support
* Tail Tagging Mode (One byte Added before FCS) Support at Port 3 to Inform The Processor Which Ingress Port Receives the Packet and its Priority
* Programmable MAC Addresses for

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: KSZ8462FHLI, KSZ8462HLI. Please refer to the document for exact specifications by model.

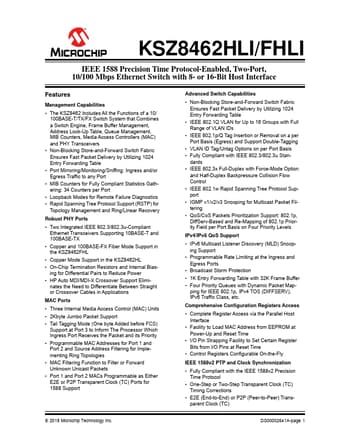

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
KSZ8462FHLI, KSZ8462HLI
Manufacturer
Microchip ↗
File Size
2.15 MB
Datasheet
KSZ8462HLI-Microchip.pdf
Description
10/100 Mbps Ethernet Switch
Note
This datasheet PDF includes multiple part numbers: KSZ8462FHLI, KSZ8462HLI.
Please refer to the document for exact specifications by model.
