LAN7500i - Hi-Speed USB 2.0 to 10/100/1000 Ethernet Controller

Product Overview

Microchip

📥 Download Datasheet

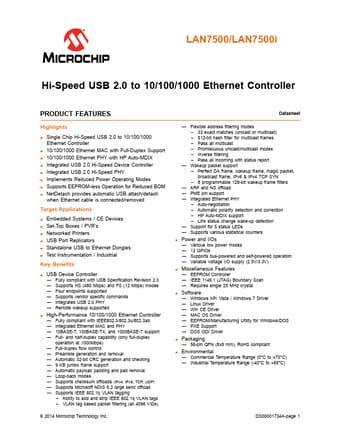

LAN7500i Hi-Speed USB 2.0 to 10/100/1000 Ethernet Controller by Microchip - Datasheet Preview — Datasheet preview – LAN7500i

Datasheet Details

Part number	LAN7500i
Manufacturer	Microchip
File Size	0.99 MB
Description	Hi-Speed USB 2.0 to 10/100/1000 Ethernet Controller
Datasheet	LAN7500i Datasheet
Note	This datasheet PDF includes multiple part numbers: LAN7500i, LAN7500. Please refer to the document for exact specifications by model.
Additional preview pages of the LAN7500i datasheet.

Product details

Description

and Configuration 11 2.1 Pin Assignments . . .

Features

Highlights.
Single Chip Hi-Speed USB 2.0 to 10/100/1000 Ethernet Controller.
10/100/1000 Ethernet MAC with Full-Duplex Support.
10/100/1000 Ethernet PHY with HP Auto-MDIX.
Integrated USB 2.0 Hi-Speed Device Controller.
Integrated USB 2.0 Hi-Speed PHY.
Implements Reduced Power Operating Modes.
Supports EEPROM-less Operation for Reduced BOM.
NetDetach provides automatic USB attach/detach when Ethernet cable is connected/removed Target.
