LM2576

52kHz Simple 3A Buck Regulator

LM2576 Features

* 3.3V, 5V, 12V, and Adjustable Output Versions

* Voltage over Specified Line and Load Conditions: - Fixed Version: ±3% Max. Output Voltage - Adjustable Version: ±2% Max. Feedback Voltage

* Specified 3A Output Current

* Wide Input Voltage Range of 4V to 40V

LM2576 General Description

The LM2576 series of monolithic integrated circuits provide all the active functions for a step-down (buck) switching regulator. Fixed versions are available with a 3.3V, 5V, or 12V fixed output. Adjustable versions have an output voltage range from 1.23V to 37V. Both versions are capable of driving.

LM2576 Datasheet (1.28 MB)

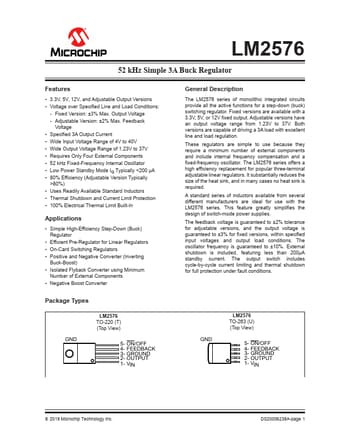

Preview of LM2576 PDF

Datasheet Details

Part number:

LM2576

Manufacturer:

Microchip ↗

File Size:

1.28 MB

Description:

52khz simple 3a buck regulator.
