MCP39F511N - Single-Phase Power-Monitoring

Microchip

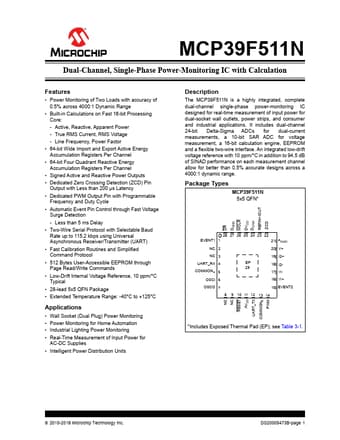

MCP39F511N Datasheet Preview — Preview of MCP39F511N PDF

Datasheet Details

Part number	MCP39F511N
Manufacturer	Microchip ↗
File Size	819.71 KB
Description	Single-Phase Power-Monitoring
Datasheet	MCP39F511N-Microchip.pdf

MCP39F511N Product details

Description

The MCP39F511N is a highly integrated, complete dual-channel single-phase power-monitoring IC designed for real-time measurement of input power for dual-socket wall outlets, power strips, and consumer and industrial applications.

Features

Power Monitoring of Two Loads with accuracy of 0.5% across 4000:1 Dynamic Range.
Built-in Calculations on Fast 16-bit Processing Core: - Active, Reactive, Apparent Power - True RMS Current, RMS Voltage - Line Frequency, Power Factor.
64-bit Wide Import and Export Active Energy Accumulation Registers Per Channel.
64-bit Four Quadrant Reactive Energy Accumulation Registers Per Channel.
Signed Active and Reactive Power Outputs.
Dedicated Zero C.
