MEC1414, MEC1404 Datasheet - Microchip

MEC1414 Keyboard and Embedded Controller

chapter to determine specific chip configuration options. Keyboard Matrix Scan Controller SMBus 2.0 Ports PS/2 Controllers GPIOs SPI Interfaces BC-Link Interfaces ADCs DAC PWMs TACHs UART Catalog Part Number Package Host Interfaces SRAM Memory (Code + Data) MEC1404-NU MEC1404-SZ MEC1406-NU MEC.

MEC1414 Features

* 3.3V Operation

* ACPI 3.0 Compliant

* PC2001 compliant

* VTR (standby) and VBAT Power Planes - Low Standby Current in Sleep Mode

* Connected Standby Support

* 32kHz Clock Source - Internal 32kHz Oscillator - External 32kHz Clock Source - 32kHz Crysta

MEC1404-Microchip.pdf

This datasheet PDF includes multiple part numbers: MEC1414, MEC1404. Please refer to the document for exact specifications by model.

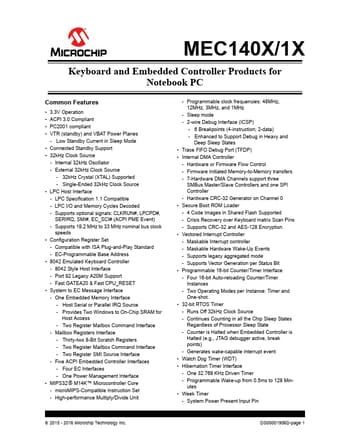

MEC1414 Datasheet Preview Page 2 MEC1414 Datasheet Preview Page 3

Datasheet Details

Part number:

MEC1414, MEC1404

Manufacturer:

Microchip ↗

File Size:

3.55 MB

Description:

Keyboard and embedded controller.

Note:

This datasheet PDF includes multiple part numbers: MEC1414, MEC1404.
Please refer to the document for exact specifications by model.
