MIC2506 - Single 2A/Dual 1A High-Side Switches

This page provides the datasheet information for the MIC2506, a member of the MIC2505 Single 2A/Dual 1A High-Side Switches family.

Datasheet Summary

Description

The MIC2505, MIC2505-1, MIC2505-2, and MIC2506 are single and dual integrated high-side power switches that consist of TTL-compatible control/enable inputs, a charge pump, and protected N-channel MOSFETs.

Features

  • Low MOSFET On-Resistance to 3.0V - 30 mΩ Typical at 5V (MIC2505 Series) - 35 mΩ Typical at 3.3V (MIC2505 Series) - 75 mΩ Typical at 5V (Each MIC2506 Output) - 80 mΩ Typical at 3.3V (Each MIC2506 Output).
  • 3.0V to 7.5V Input.
  • 110 µA Typical On-State Supply Current.
  • 1 µA Typical Off-State Supply Current.
  • Output Can be Forced Higher than Input (Off-State).
  • Current-Limit.
  • Thermal Shutdown.
  • 2.5V Undervoltage Lockout (UVLO).

📥 Download Datasheet

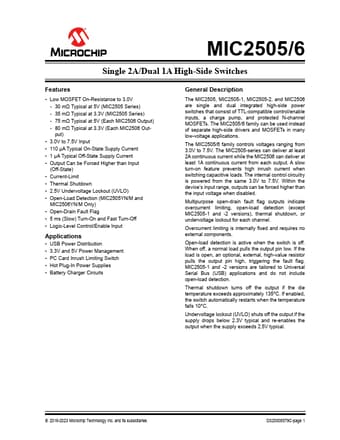

Datasheet preview – MIC2506

Datasheet Details

Part number MIC2506
Manufacturer Microchip
File Size 1.68 MB
Description Single 2A/Dual 1A High-Side Switches
Datasheet download datasheet MIC2506 Datasheet
Additional preview pages of the MIC2506 datasheet.

📁 Similar Datasheet

  • MIC2506 - Single 2A / Dual 1A / High-Side Switches (Micrel Semiconductor)
  • MIC2505 - Single 2A / Dual 1A / High-Side Switches (Micrel Semiconductor)
  • MIC2514 - Integrated High-Side Switch (Micrel Semiconductor)
  • MIC2524 - Quad USB Power Control Switch Not Recommended for New Designs (Micrel Semiconductor)
  • MIC2525 - USB Power Control Switch Not Recommended for New Designs (Micrel Semiconductor)
  • MIC2526 - Dual USB Power Control Switch Not Recommended for New Designs (Micrel Semiconductor)
  • MIC2527 - Quad USB Power Control Switch (Micrel Semiconductor)
  • MIC2529 - Single-Channel USB Power Controller Advance Information (Micrel Semiconductor)
  • MIC2536 - Dual USB Power Distribution Switch Preliminary Information (Micrel Semiconductor)
  • MIC2537 - Quad Power Distribution Switch (Micrel Semiconductor)
Other Datasheets by Microchip
  • MIC2505 - Single 2A/Dual 1A High-Side Switches
  • MIC2536 - Dual USB Power Distribution Switch
  • MIC2544 - Programmable Current-Limit High-Side Switch
  • MIC2548 - Programmable Current-Limit High-Side Switch
  • MIC2003 - Fixed and Adjustable Current Limiting Power Distribution Switches
  • MIC2004 - Fixed and Adjustable Current Limiting Power Distribution Switches
  • MIC2005 - Fixed and Adjustable Current Limiting Power Distribution Switches
  • MIC2005A - Fixed and Adjustable Current Limiting Power Distribution Switches

Full PDF Text Transcription

Click to expand full text
MIC2505/6 Single 2A/Dual 1A High-Side Switches Features • Low MOSFET On-Resistance to 3.0V - 30 mΩ Typical at 5V (MIC2505 Series) - 35 mΩ Typical at 3.3V (MIC2505 Series) - 75 mΩ Typical at 5V (Each MIC2506 Output) - 80 mΩ Typical at 3.3V (Each MIC2506 Output) • 3.0V to 7.5V Input • 110 µA Typical On-State Supply Current • 1 µA Typical Off-State Supply Current • Output Can be Forced Higher than Input (Off-State) • Current-Limit • Thermal Shutdown • 2.5V Undervoltage Lockout (UVLO) • Open-Load Detection (MIC2505YN/M and MIC2506YN/M Only) • Open-Drain Fault Flag • 5 ms (Slow) Turn-On and Fast Turn-Off • Logic-Level Control/Enable Input Applications • USB Power Distribution • 3.
