MIC38300A

Ultra-Low Noise 3A Power Module

MIC38300A Features

* 3A Continuous Operating Current

* Input Voltage Range: 3.0V to 5.5V

* Adjustable Output Voltage Down to 1.0V

* Output Noise Less Than 5 mV

* Ultra-Fast Transient Performance

* Unique Switcher Plus LDO Architecture

* Fully Integrated MOSFET Sw

MIC38300A General Description

The MIC38300A is a 3A current step-down converter that provides the benefits of an LDO in respect to ease of use, fast transient performance, high PSRR, and low noise while offering the efficiency of a switching regulator. As output voltages move lower, the output noise and transient response of a s.

MIC38300A Datasheet (3.80 MB)

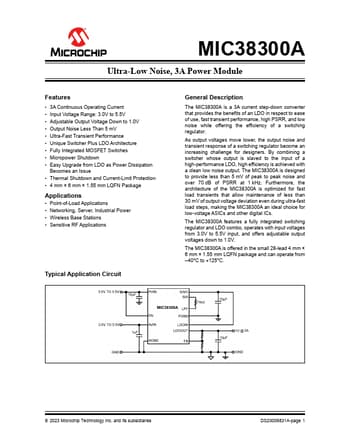

Preview of MIC38300A PDF

Datasheet Details

Part number:

MIC38300A

Manufacturer:

Microchip ↗

File Size:

3.80 MB

Description:

Ultra-low noise 3a power module.
