MMS006AA Datasheet, Switch, Microchip

MMS006AA Features

  • Switch
  • Wide operating range: DC
      –20 GHz Functional Block Diagram
  • Low insertion loss: <2 dB
  • High input P1dB: 24 dBm
  • Excellent isolation:

PDF File Details

Part number:

MMS006AA

Manufacturer:

Microchip ↗

File Size:

619.13kb

Download:

📄 Datasheet

Description:

Dc-20ghz gaas mmic sp2t non-reflective switch.

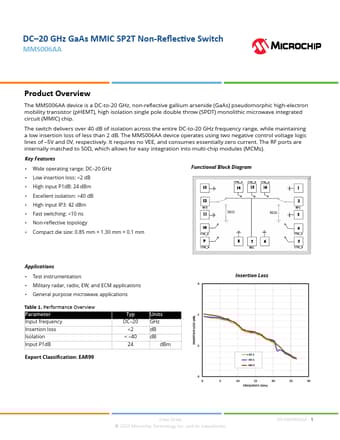

Datasheet Preview: MMS006AA 📥 Download PDF (619.13kb)
Page 2 of MMS006AA Page 3 of MMS006AA

MMS006AA Application

  • Applications
  • Test instrumentation
  • Military radar, radio, EW, and ECM applications
  • General purpose microwave applicati
