OS81214, OS81212 Datasheet - Microchip

OS81214 Intelligent Network Interface Controller

The OS81212/4/6 is a highly integrated Intelligent Network Interface Controller (INIC) for 50 Mbit/s INICnetbased automotive networks with a transformer-less balanced media physical layer (bPHY) optimized for unshielded twisted pair (UTP) copper wire. The INIC provides encapsulation of all low-level.

OS81214 Features

* Complete 50 Mbit/s synchronous network interface

* Embedded network management functions - Network protection mode - Hardware & application watchdog timer - Intelligent muting - Diagnostics - Fallback Operation

* IEEE MAC addressing and Ethernet channel

* Media Loca

OS81212-Microchip.pdf

This datasheet PDF includes multiple part numbers: OS81214, OS81212. Please refer to the document for exact specifications by model.

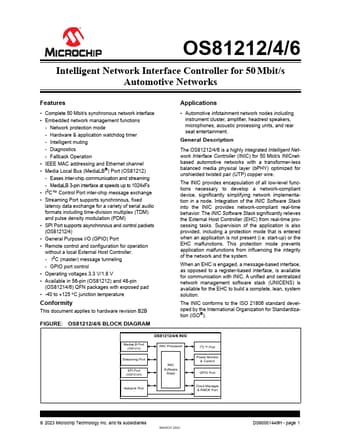

OS81214 Datasheet Preview Page 2 OS81214 Datasheet Preview Page 3

Datasheet Details

Part number:

OS81214, OS81212

Manufacturer:

Microchip ↗

File Size:

1.43 MB

Description:

Intelligent network interface controller.

Note:

This datasheet PDF includes multiple part numbers: OS81214, OS81212.
Please refer to the document for exact specifications by model.
