PAC1942-2

Single/Multi-Channel Power Monitor

Microchip

PAC1942-2 Features

* High-Side/Low-Side Current Monitor with One, Two, Three or Four Channels: - 100 mV Full-Scale Range (FSR) for current sense voltage - 16-bit resolution for current measurement - Programmable FSR: -50 mv to +50 mv - External sense resistor sets the full-scale current range - Very low input

PAC1942-2 General Description

The PAC194X products are one, two, three and four-channel energy monitors, with bus voltage monitors and current sense amplifiers that feed high-resolution ADCs. There are two versions of the PAC194X: the PAC194X-1 devices are for high-side current sensing and the PAC194X-2 devices are for low-side .

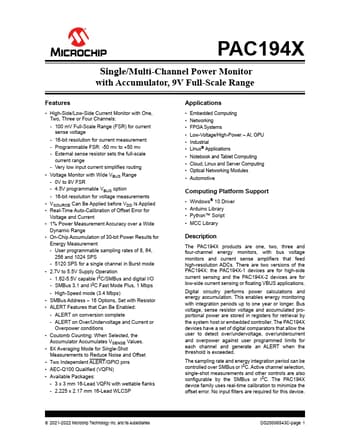

PAC1942-2 Datasheet (1.18 MB)
