PAC1953, PAC1951-1 Datasheet - Microchip

PAC1953 Single/Multi-Channel Power Monitor

The PAC195X products are one, two, three and four-channel energy monitors, with bus voltage monitors and current sense amplifiers that feed high-resolution ADCs. There are two versions of the PAC195X: the PAC195X-1 devices are for high-side current sensing and the PAC195X-2 devices are for low-side .

PAC1953 Features

* High-Side/Low-Side Current Monitor with One, Two, Three or Four Channels: - 100 mV Full-Scale Range (FSR) for current sense voltage - Programmable FSR: -50 mv to +50 mv - 16-bit resolution for current measurements - External sense resistor sets the full-scale current range - Very low input

PAC1951-1-Microchip.pdf

This datasheet PDF includes multiple part numbers: PAC1953, PAC1951-1. Please refer to the document for exact specifications by model.

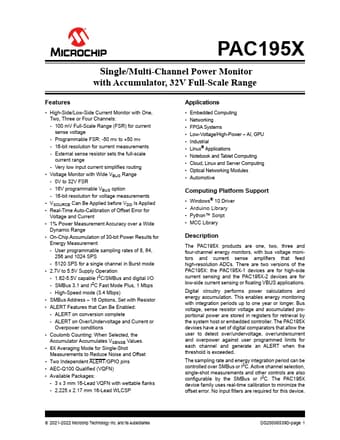

PAC1953 Datasheet Preview Page 2 PAC1953 Datasheet Preview Page 3

Datasheet Details

Part number:

PAC1953, PAC1951-1

Manufacturer:

Microchip ↗

File Size:

1.14 MB

Description:

Single/multi-channel power monitor.

Note:

This datasheet PDF includes multiple part numbers: PAC1953, PAC1951-1.
Please refer to the document for exact specifications by model.
