PIC12CE673 Datasheet - Microchip

PIC12CE673 8-Bit CMOS Microcontroller

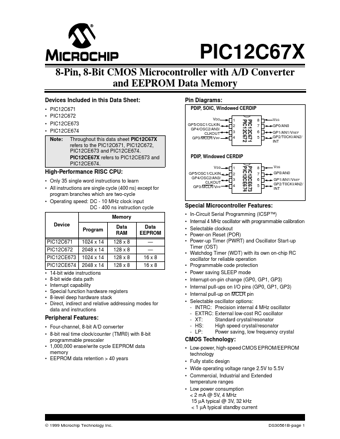

PIC12C67X 8-Pin, 8-Bit CMOS Microcontroller with A/D Converter and EEPROM Data Memory Devices Included in this Data Sheet: PIC12C671 PIC12C672 PIC12CE673 PIC12CE674 Note: Throughout this data sheet PIC12C67X refers to the PIC12C671, PIC12C672, PIC12CE673 and PIC12CE674. PIC12CE67X refers to PIC12CE673 and PIC12CE674. High-Performance RISC CPU: Only 35 single word instructions to learn All instructions are single cycle (400 ns) ex.

PIC12CE673 Features

* Four-channel, 8-bit A/D converter

* 8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler

* 1,000,000 erase/write cycle EEPROM data memory

* EEPROM data retention > 40 years PIC12C671 PIC12C672 Pin Diagrams: PDIP, SOIC, Windowed CERDIP VDD GP5/

PIC12CE673 Datasheet (973.27 KB)
