PIC12LF1571 - 8-Pin MCU

Product Overview

Microchip

📥 Download Datasheet

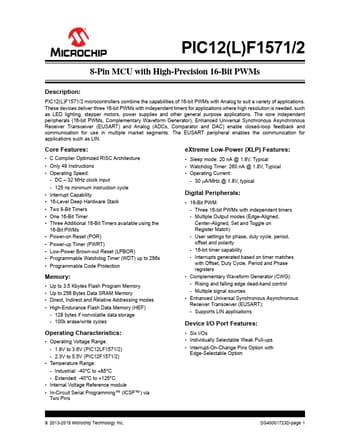

PIC12LF1571 8-Pin MCU by Microchip - Datasheet Preview — Datasheet preview – PIC12LF1571

Datasheet Details

Part number	PIC12LF1571
Manufacturer	Microchip
File Size	2.47 MB
Description	8-Pin MCU
Datasheet	PIC12LF1571 Datasheet
Note	This datasheet PDF includes multiple part numbers: PIC12LF1571, PIC12F1571. Please refer to the document for exact specifications by model.
Additional preview pages of the PIC12LF1571 datasheet.

Product details

Description

PIC12(L)F1571/2 microcontrollers combine the capabilities of 16-bit PWMs with Analog to suit a variety of applications.

Features

C Compiler Optimized RISC Architecture.
Only 49 Instructions.
Operating Speed: - DC.
32 MHz clock input - 125 ns minimum instruction cycle.
Interrupt Capability.
16-Level Deep Hardware Stack.
Two 8-Bit Timers.
One 16-Bit Timer.
Three Additional 16-Bit Timers available using the 16-Bit PWMs.
Power-on Reset (POR).
Power-up Timer (PWRT).
Low-Power Brown-out Reset (LPBOR).
Programma.
