PIC16C52 - 8-Bit CMOS Microcontroller

Datasheet Summary

Features

8-bit real time clock/counter (TMR0) with 8-bit programmable prescaler.
Power-On Reset (POR).
Device Reset Timer (DRT).
Watchdog Timer (WDT) with its own on-chip RC oscillator for reliable operation.
Programmable code-protection.
Power saving SLEEP mode.
Selectable oscillator options: - RC: Low-cost RC oscillator - XT: Standard crystal/resonator - HS: High-speed crystal/resonator - LP: Power saving, low-frequency crystal CMOS Techn.

Datasheet Details

Part number	PIC16C52
Manufacturer	Microchip
File Size	1.15 MB
Description	8-Bit CMOS Microcontroller
Datasheet	PIC16C52 Datasheet

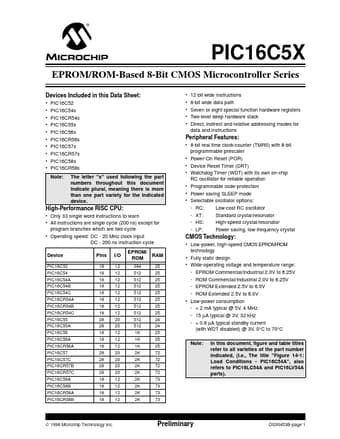

Additional preview pages of the PIC16C52 datasheet.

📁 Similar Datasheet

PIC16C5 - 14-Pin/ 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C54 - 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C54A - 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C54B - 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C54C - 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C55 - 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C554 - EPROM-Based 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C554A - EPROM-Based 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C556A - EPROM-Based 8-Bit CMOS Microcontroller (Microchip Technology)

PIC16C558 - EPROM-Based 8-Bit CMOS Microcontroller (Microchip Technology)

Full PDF Text Transcription

Click to expand full text

M PIC16C5X EPROM/ROM-Based 8-Bit CMOS Microcontroller Series Devices Included in this Data Sheet: • PIC16C52 • PIC16C54s • PIC16CR54s • PIC16C55s • PIC16C56s • PIC16CR56s • PIC16C57s • PIC16CR57s • PIC16C58s • PIC16CR58s Note: The letter "s" used following the part numbers throughout this document indicate plural, meaning there is more than one part variety for the indicated device.
