PIC16F87 - Flash MCU

Product Overview

Microchip

Part number	PIC16F87
Manufacturer	Microchip
File Size	2.40 MB
Description	Flash MCU
Datasheet	PIC16F87 Datasheet

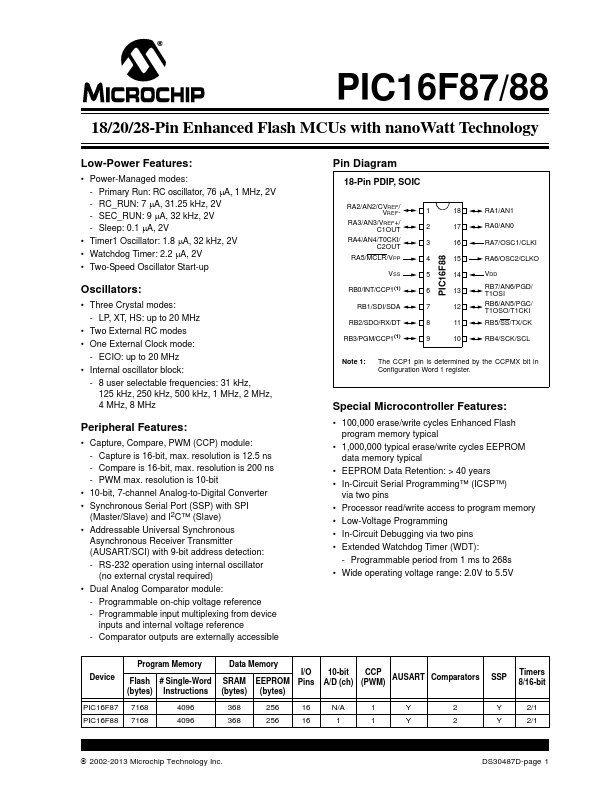

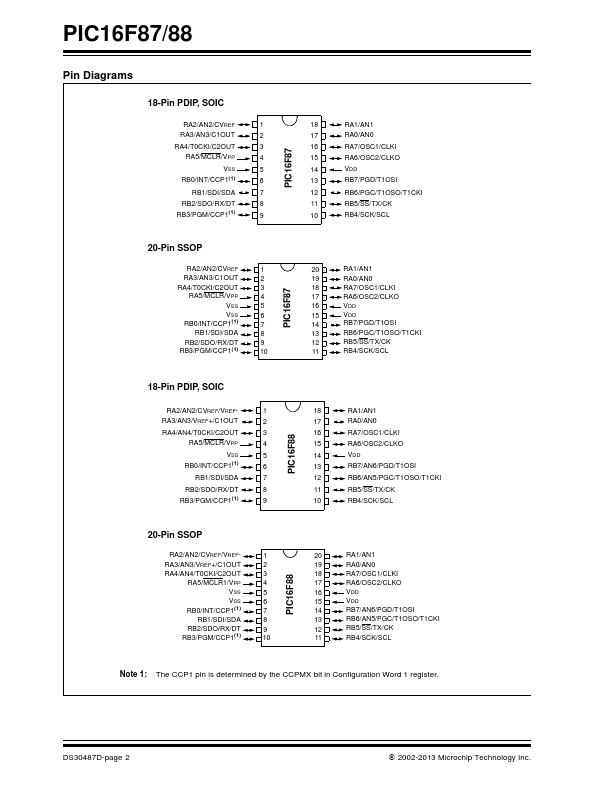

Additional preview pages of the PIC16F87 datasheet.

Power-Managed modes: - Primary Run: RC oscillator, 76 A, 1 MHz, 2V - RC_RUN: 7 A, 31.25 kHz, 2V - SEC_RUN: 9 A, 32 kHz, 2V - Sleep: 0.1 A, 2V.
Timer1 Oscillator: 1.8 A, 32 kHz, 2V.
Watchdog Timer: 2.2 A, 2V.
Two-Speed Oscillator Start-up Oscillators:.
Three Crystal modes: - LP, XT, HS: up to 20 MHz.
Two External RC modes.
One External Clock mode: - ECIO: up to 20 MHz.
Internal oscillator block: - 8 user selectable fr.
