PIC18F2515, PIC18F4510 Datasheet - Microchip

PIC18F2515 28/40/44-Pin Flash Microcontrollers

PIC18F2X1X/4X1X 28/40/44-Pin Flash Microcontrollers with 10-Bit A/D and nanoWatt Technology Power-Managed Modes: Run: CPU On, Peripherals On Idle: CPU Off, Peripherals On Sleep: CPU Off, Peripherals Off Idle mode Currents Down to 3.0 μA Typical Sleep mode Currents Down to 20 nA Typical Timer1 Oscillator: 1.8 μA, 32 kHz, 2V Watchdog Timer: 2.1 μA Two-Speed Oscillator Start-up Peripheral Highlights: High-Cur.

PIC18F2515 Features

* C Compiler Optimized Architecture: - Optional extended instruction set designed to optimize re-entrant code

* 100,000 Erase/Write Cycle Flash Program Memory Typical

* Three Programmable External Interrupts

* Four Input Change Interrupts

* Priority Levels fo

PIC18F4510_MicrochipTechnology.pdf

This datasheet PDF includes multiple part numbers: PIC18F2515, PIC18F4510. Please refer to the document for exact specifications by model.

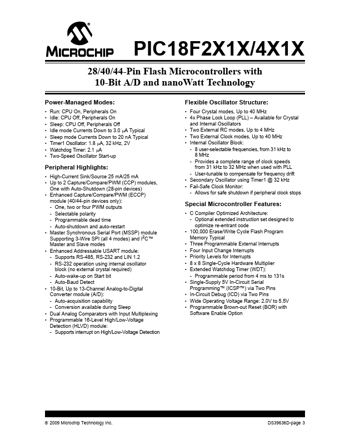

PIC18F2515 Datasheet Preview Page 2 PIC18F2515 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC18F2515, PIC18F4510

Manufacturer:

Microchip ↗

File Size:

2.87 MB

Description:

28/40/44-pin flash microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC18F2515, PIC18F4510.
Please refer to the document for exact specifications by model.
