PIC18LF65K80, PIC18FXXK80 Datasheet - Microchip

PIC18LF65K80 Flash Microcontroller

PIC18F66K80 FAMILY 28/40/44/64-Pin, Enhanced Flash Microcontrollers with ECAN™ XLP Technology Power-Managed Modes: Run: CPU on, Peripherals on Idle: CPU off, Peripherals on Sleep: CPU off, Peripherals off Two-Speed Oscillator Start-up Fail-Safe Clock Monitor (FSCM) Power-Saving Peripheral Module Disable (PMD) Ultra Low-Power Wake-up Fast Wake-up, 1 s, Typical Low-Power WDT, 300 nA, Typical Run m.

PIC18LF65K80 Features

* Conforms to CAN 2.0B Active Specification

* Three Operating modes: - Legacy mode (full backward compatibility with existing PIC18CXX8/FXX8 CAN modules) - Enhanced mode - FIFO mode or programmable TX/RX buffers

* Message Bit Rates up to 1 Mbps

* DeviceNet™ Data Byte

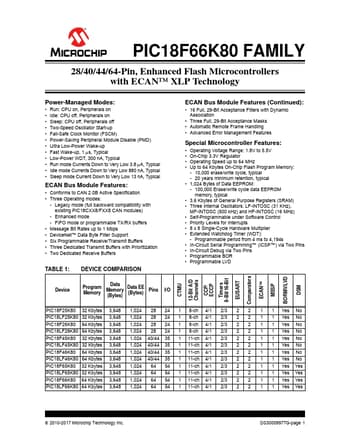

PIC18FXXK80-Microchip.pdf

PIC18LF65K80 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC18LF65K80, PIC18FXXK80. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PIC18LF65K80, PIC18FXXK80

Manufacturer:

Microchip ↗

File Size:

4.59 MB

Description:

Flash microcontroller.

Note:

This datasheet PDF includes multiple part numbers: PIC18LF65K80, PIC18FXXK80.
Please refer to the document for exact specifications by model.
