PIC24FJ256GA705 16-Bit Microcontrollers

PIC24FJ256GA705 FAMILY 16-Bit General Purpose Microcontrollers with 256-Kbyte Flash and 16-Kbyte RAM in Low Pin Count Packages High-Performance CPU Modified Harvard Architecture Up to 16 MIPS Operation @ 32 MHz 8 MHz Fast RC Internal Oscillator: - 96 MHz PLL option - Multiple clock divide options - Fast start-up 17-Bit x 17-Bit Single-Cycle Hardware Fractional/Integer Multiplier 32-Bit by 16-Bit Hardware Divider 16-Bit x 16-Bit Working.

PIC24FJ256GA705 Features

* Up to 14-Channel, Software-Selectable, 10/12-Bit Analog-to-Digital Converter: - 12-bit, 200K samples/second conversion rate (single Sample-and-Hold) - Sleep mode operation - Charge pump for operating at lower AVDD - Band gap reference input feature - Windowed threshold compare feature - Au

PIC24FJ64GA705-Microchip.pdf

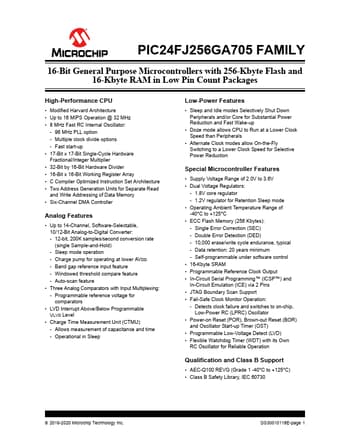

PIC24FJ256GA705 Datasheet Preview — This datasheet PDF includes multiple part numbers: PIC24FJ256GA705, PIC24FJ64GA705. Please refer to the document for exact specifications by model.

PIC24FJ256GA705 Datasheet Preview Page 2

PIC24FJ256GA705 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC24FJ256GA705, PIC24FJ64GA705

Manufacturer:

Microchip ↗

File Size:

3.22 MB

Description:

16-bit microcontrollers.

Note:

This datasheet PDF includes multiple part numbers: PIC24FJ256GA705, PIC24FJ64GA705.
Please refer to the document for exact specifications by model.
