PIC32MM0032GPL036, PIC32MM0016GPL020 Datasheet - Microchip

PIC32MM0032GPL036 32-Bit Flash Microcontroller

PIC32MM0064GPL036 FAMILY 32-Bit Flash Microcontroller with MIPS32® microAptiv™ UC Core with Low Power and Low Pin Count Operating Conditions 2.0V to 3.6V, -40°C to +125°C, DC to 25 MHz 2.0V to 3.6V, -40°C to +85°C, DC to 25 MHz Low-Power Modes Low-Power modes: - Idle: CPU off, peripherals run from system clock - Sleep: CPU and peripherals off: - Fast wake-up Sleep with retention - Low-power Sleep with retention 0.5 μA Sleep Current for Regulator Retention.

PIC32MM0032GPL036 Features

* Low Pin Count Packages, Ranging from 20 to 36 Pins, including UQFN as Small as 4x4 mm

* Up to 64K Flash Memory: - 20,000 erase/write cycle endurance - 20 years minimum data retention - Self-programmable under software control

* Up to 8K Data Memory

* Pin-Compatible

PIC32MM0016GPL020-Microchip.pdf

This datasheet PDF includes multiple part numbers: PIC32MM0032GPL036, PIC32MM0016GPL020. Please refer to the document for exact specifications by model.

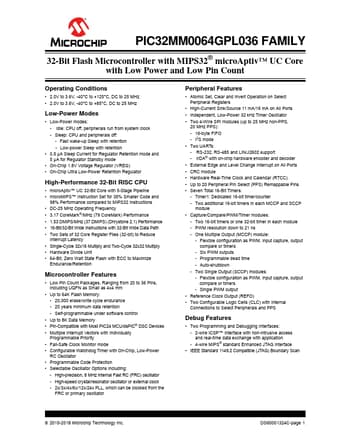

PIC32MM0032GPL036 Datasheet Preview Page 2 PIC32MM0032GPL036 Datasheet Preview Page 3

Datasheet Details

Part number:

PIC32MM0032GPL036, PIC32MM0016GPL020

Manufacturer:

Microchip ↗

File Size:

2.38 MB

Description:

32-bit flash microcontroller.

Note:

This datasheet PDF includes multiple part numbers: PIC32MM0032GPL036, PIC32MM0016GPL020.
Please refer to the document for exact specifications by model.
